Automated Fabrication Inspection

Best in class accuracy, 10X faster, competitve pricing. Precise, fast, affordable, effective.

US Metal Crafters

"We have been very pleased with our experience with both the machine and customer service at InspecVision. It has been a talking point of shop tours and customers have been very impressed."

Meredith Barnes

Marketing Manager, US Metal Crafters
Viscor

"The InspecVision system gives us the ability to compare our First Off and Last Off output to real time digital CAD data."

Santino Nemi

Chief Operating Officer, Viscor
TT Gaskets

"The main benefit is that our whole quality system relies on the machine, and > 90% of the time we have a more accurate measuring method than our customers do. Also, the reverse engineering feature saves us a LOT of time, tens of minutes per complex part."

Markus Riuttaskorpi

Quality Engineer, TT Gaskets
maysteel

"The system is extremely fast, extremely accurate and can be placed directly on the shop floor next to the punching machines."

Mike Dreikosen

Senior Manufacturing Engineer Maysteel LLC
sub-zero

"The greatest benefits for us are the accuracy, the user interface, and the speed in which we can inspect parts."

Stephen Burnett

Sr. Project Engineer Sub-Zero Group Inc.

System Capabilities

InspecVision Planar U.S. facilitates parts inspection in a fraction of the time it used to take. The Planar inspection system—the world’s fastest automated 2D inspection system—requires zero setup, features single-click inspection, and records up to 40 million points in under 0.1 seconds. It’s simply the fastest, most accurate, and most effective solution for manufacturers and others responsible for quality control!

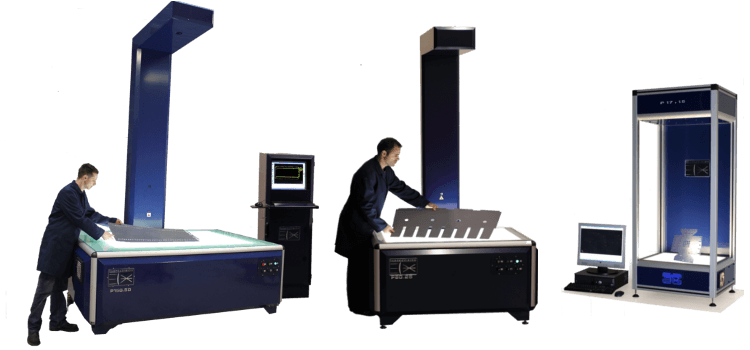

11 Models to Fit Your Needs

Along with the widest range of the award-winning Planar 2D measurement system, we also offer additional options such as the Opti-Scan which allow you to extend measurement capabilities to full 3D using white light scanning technologies. Our selection of 11 unique models enable you to measure parts up to 137" x 86" or 93" x 62" without repositioning in size at accuracies between +/- 0.00079" to +/- 0.00197" (+/- 20 microns and +/- 50 microns).

Solving Real World Problems in Seconds

The InspecVision Planar system is the fastest automated 2D inspection system available today. It has no moving components and uses an ultra-high-resolution camera to take measurements by scanning parts that are positioned on a backlit glass surface. It can be utilized not only for inspection, but also for reverse engineering of semi-transparent and flat parts.

Manufacturers and sheet metal fabricators—especially those who operate X/Y CNC, laser, plasma, punch, water jet cutting, and forming machines—find a rapid return on their investments when regularly having to inspect or reverse engineer materials such as flat, folded, or formed sheet metal components; gaskets; laminations; O-Rings; opaque or semi-transparent flat materials; and paper, acetate, or electronic drawings.


A color map can be projected live on to your part and provide immediate feedback on part quality.

The Hardware

Inspecvision’s Planar system is specifically designed for quality control applications and reverse engineering applications in the sheet metal industry. However, it can measure any material that is opaque or semi-transparent and flat such as polymers, paper, wood, cork, and even fabric.

planar home

The Software

Our award-winning software enables immediate inspection result feedback and quick reverse engineering of 2D flat parts, 2.5D formed parts and full 3D parts. The software allows for the editing and cleaning of data to ensure clean edges, standardization of holes and edge profiles.

Using specialized modules within the Planar system software, objects like tubes, gaskets, and O-rings can be measured quickly and accurately. Moreover, the system allows you to measure or reverse engineer multiple parts or drawings simultaneously.

software-3

How to Get Started

Installation

Every Planar installation is completed by an ISO accredited service engineer. Typical installations are less than one day for placement, assembly and calibration.

Calibration

Every Planar system comes with a calibration kit which includes an alignment target for the entire stage, a calibrated and certified test article and a calibrated and certified training part. Every factory calibration includes full documentation with ANAB ISO 17025 Accreditation.

Traceability

Every Planar system includes installation and calibration documentation to prove a traceable link to a national standards organization: in this case NIST in Gaithersburg MD.

Financing

Flexible financing solutions are available to meet the needs of our customers.

Training

Every Planar system includes on site system training unless otherwise requested. The on site training is backed up by regularly scheduled internet training classes.

Support

The Planar installation engineer becomes your factory support resource for system support. They are backed up by full time support schedulers, applications engineers and service, repair and calibration engineers.
