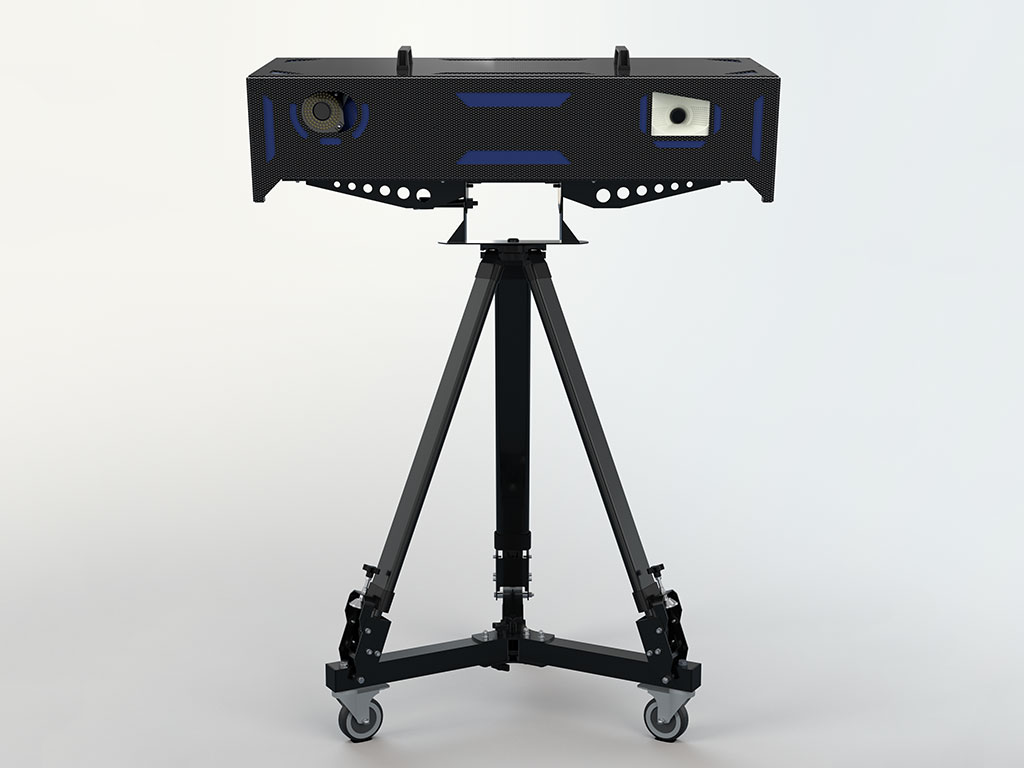

Opti-Scan 800.35

Opti-Scan 800.35

Product Features

Measures surfaces and edges in 3D
Single click automated inspection
White light scanning technology
Certified accuracy
18MP camera as standard
Designed for factory floor conditions
Retrofit and use with Planar 2D

Overview / Specifications

Description Specification/Scope of Supply
Max Single scan area 1 & 2 800mm (X) x 500mm (Y)
Max Single scan depth* 1,2 & 3 500mm (Z)
Volumetric accuracy** 70 microns
Repeatability** 35 microns
Point Spacing Better than 170 microns
Scanning speed*** > 250,000 points per second
Scanning time*** < 10 seconds
Processing time**** < 5 seconds
Peripheral equipment USB lighting controller, Standard Computer Interface
Required Operating System Windows 7 64bit
Software included 3D scanning, automated repositioning, texture map acquisition, 3D color rendering, creation of cross-sections, creation of 3D edges, reverse engineering of 3D edges to DXF/DWG, comparison of 3D edges to DXF/DWG, reverse projection of colored deviation reports onto part, creation of 3D point clouds in PLY, STL, VRML, ASCII formats, creation of texture mapped point clouds, calibration software.
Free 3D Inspection Software Fully compatible with off the shelf free 3D inspection software. Functionality includes comparison to 3D solid models, dimensioning, GD&T, cross-sections, full surface deviation inspection, merging of scans, customizable reports, automatic alignment of scan to CAD, point cloud meshing, processing and filtering, extraction of nominal data from CAD model, comparison of 2 scans.
Advanced 3D inspection software option (Geomagic Control) Available on request. Comparison to 3D solid models, GD&T, SPC, cross-sections, full surface and edge inspection, creation of report templates, automated merging of point clouds, automatic alignment of scan to CAD, automatic point cloud processing and filtering, automatic detection or repositioning spheres, macro creation for full automation, automatic extraction of nominal data from CAD model, comparison of 2 scans.
3D reverse engineering (advanced package) Available on request. Creation of 3D solid models from scan data.
Calibration Kit Included as standard, retro-reflective reference markers mounted onto steel plate with repositioning frame
Accuracy Verification Object Included as standard, calibrated ball bar
OptiProbe option The OptiProbe is a hand held wireless probing device which allows the measurement of features which are hidden from the direct view of the camera. Separate probing 3D inspection software is required to use the OptiProbe.
OptiScan construction Heavy duty aluminium tripod, dolly base. Camera and projector assemblies mounted on floating carbon fibre chassis
OptiScan enclosure ABS Carbon fibre effect
Repositioning markers Set of 24 loose magnetic photogrammetric markers to allow repositioning
Optional light table Optional light table for improved edge measuring accuracy. Manual or automatic component repositioning disc options
Camera > 18 megapixels
Projection source LED/laser projector
Data cables HDMI and USB3
Power supply 110-240V 50/60Hz
Power consumption 1.5 Amp maximum at 230 Volt, 3 Amp max at 110 Volt
EC directives Compliant with Machinery, Low voltage and EMC Directives
Paint color (powder paint) Tripod and Dolly RAL 9005: Black
Ambient operating conditions 5-35 degree C
Available configurations L = Light Table, A = Automatic Repositioning disc, M = Manual Repositioning disc
Approx Footprint width/ depth/ height/ weight 1214mm (W) x 852mm (D) x 1490mm (H) < 25kgs (Tripod)
Approx Footprint width/ depth/ height/ weight 2180mm (W) x 1095mm (D) x 1599mm (H) < 720kgs (LM & LA)
Standard packing Export crate suitable for sea shipping
Warranty One year limited warranty on hardware and software
Optional extended warranty Two or three year extended warranty (requires software upgrade option)
Software support option Annual support contract provides free software upgrades
DOWNLOAD THE SPECSHEET

1 Larger parts can be measured with multiple scans
2 Other sizes are available on request, exact dimensions may vary by slightly depending on setup.
3 Other accuracies are available on request
* Actual scanning range will be significantly larger, however measurements outside of this range may have additional noise.
** Accuracy achieved by measuring a reference object at various locations within the measuring volume, contact InspecVision for further details.
*** Time taken to measure a typical component. Results may vary depending on part measured or speed of computer
**** Time taken to process the measurements of a typical component. Results may vary depending on part measured or speed of computer.

Actual measuring accuracies achieved will depend on operating environment, user input, quality and condition of materials
Due to our policy of continuous improvement specifications are subject to change without notice, please contact factory or your InspecVision dealer
