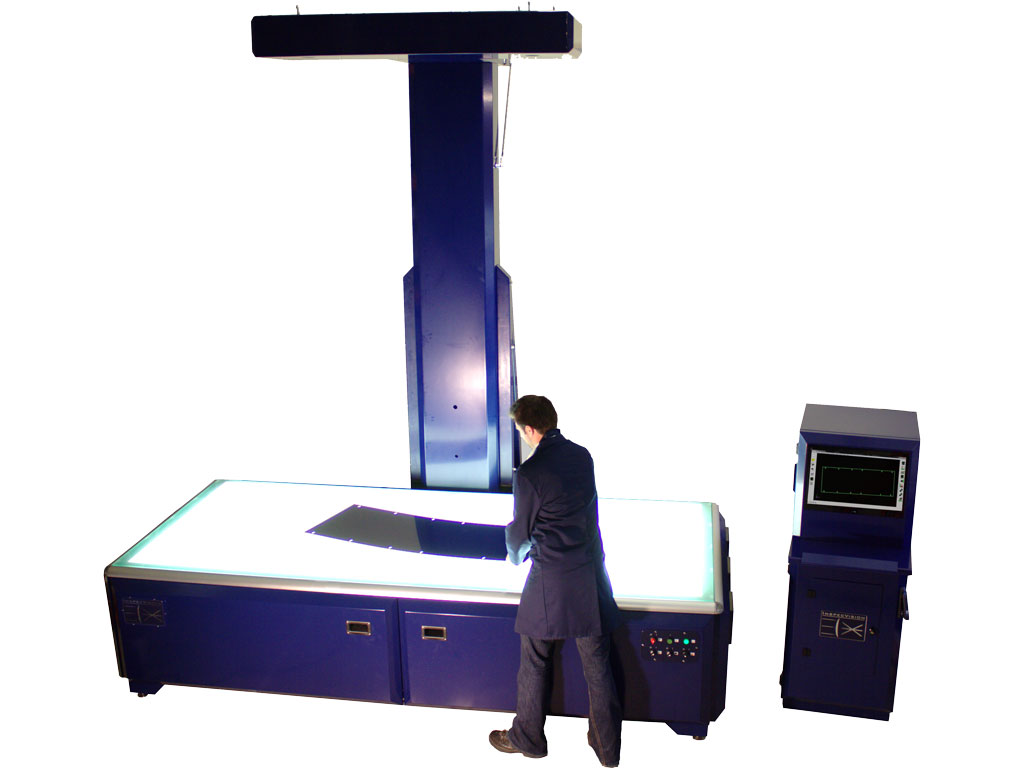

Planar 370.100

Planar 370.100

Product Features

Inspect Parts Quickly and Automatically
Ultra Fast Reverse Engineering
SPC Integration
Largest Range of Models Available
3D Scanning Add On

Overview / Specifications

Description Specification/Scope of Supply
Max component length 2355mm
Max component width 1570mm
Max component thickness 350mm
Max component weight 500kg UDL (Uniformly Distributed Load)
Measuring accuracy, length & width** +/- 100/200 μm*
Measuring accuracy, height** (optional) +/- 100 μm*
Measuring speed** <0.25sec
Camera Industrialised ultra high resolution professionally mounted in sealed enclosure
Dot Laser height measuring device (Optional) Class III R precision laser
Computer processor Intel Quad Core
Processor speed >3GHz
Hard disk >125Gb
Screen 20 inch flat screen or better
Peripheral equipment Keyboard and optical mouse
Operating software Windows 10 - 64 Bit
Proprietary InspecVision software Inspection, SPC, Reporting, Reverse engineering
Data cable USB 2 or USB3
KVM Keyboard, Video Display & Mouse stand (PC integrated into light table assembly)
Light table construction Frame with removable sheet metal cladding
Light table measuring surface Laminate glass, toughened with integral diffusion layer
Light source High efficiency fluorescent tubes or LED lighting with high frequency digital control gear
Mast construction Heavy folded sheet metal construction
Power supply 230 Volt, single phase, 50Hz or 110 Volt, single phase, 60Hz on request
Power consumption 20 Amp maximum at 230 Volt, 30 Amp max at 110 Volt
Protective devices Circuit breakers, mounted at rear of light table
Control panel Control switches for power, camera and lights. Main power indicator
EC directives Compliant with Machinery, Low voltage and EMC Directives
Paint colour (powder paint) RAL 5013 (cobalt blue)
Ambient operating conditions 10-30 degree C
Approx Footprint/installed width/ depth/ height/ weight of installed Light table and Mast 2860mm (W) x 2579mm (D) x 4883mm (H) <1400kgs
Approx Footprint/installed width/ depth/ height/weight of installed Computer Cabinet (inc keyboard tray) Optional 710mm (W) x 472mm (D) x 1739 (H) <45kgs
Standard packing Export crates suitable for sea shipping (3 nos)
Warranty One year limited warranty on hardware and software
Optional extended warranty Two or three year extended warranty (requires software upgrade option)
Software support option Annual support contract provides free software upgrades

*The first accuracy value specifies the accuracy achieved over most of the table,
the second accuracy value specifies the accuracy achieved at table edges
**Accuracy results are verified on standard production machines using tests based on ISO 10360
Actual measuring accuracies achieved will depend on operating environment, user input, quality and condition of materials
Errors and omissions excepted
Due to our policy of continuous improvement specifications are subject to change without notice, please contact factory or your InspecVision dealer.
